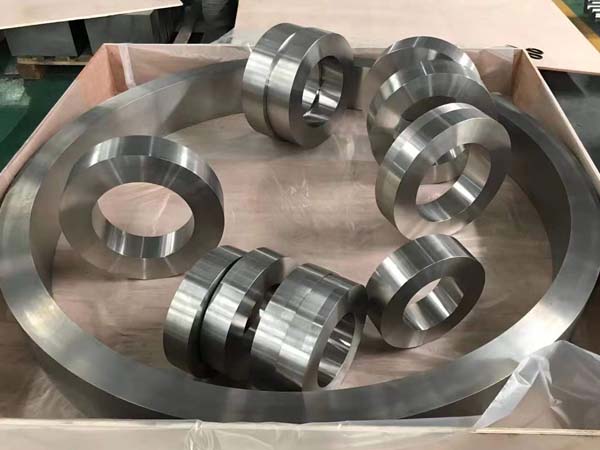

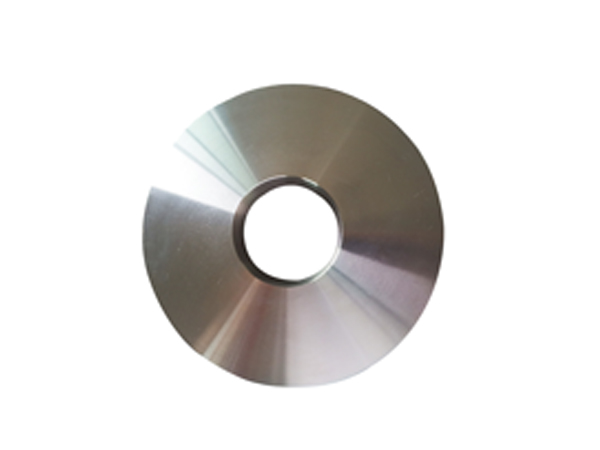

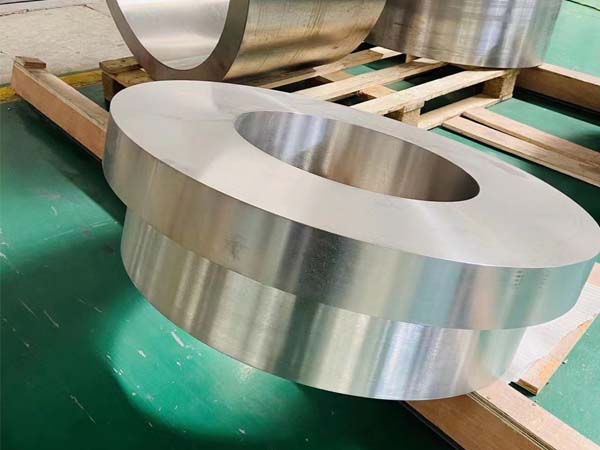

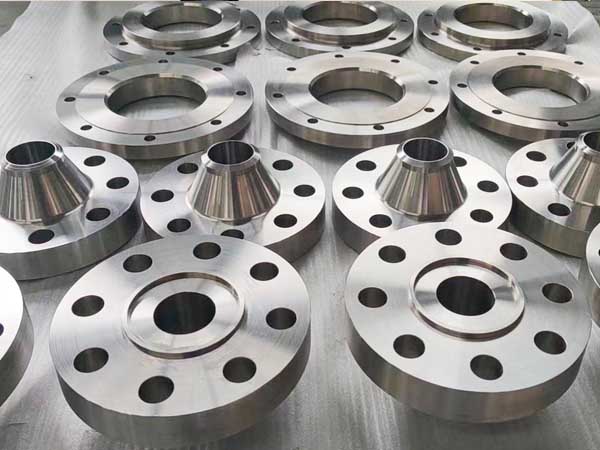

Titanium Parts
Applied in aerospace, navigation, shipbuilding, nuclear power, military industry, petroleum, chemical, marine, salt production, pharmaceutical and medical industries, Sports, construction and other industries.
Gr1 Gr2 Gr3 Gr4 Gr5
Non-magnetic and non-toxic
Low density and high specific strength
Corrosion resistance
Detailed Description
Grade : Gr1 Gr2 Gr3 Gr4 Gr5
Standard：ASTM B 348
Surface Treatment: Black, acid pickling, lathing, polishing.
Application : Applied in aerospace, navigation, shipbuilding, nuclear power, military industry, petroleum, chemical, marine, salt production, pharmaceutical and medical industries, Sports, construction and other industries.
Parameter
| Material | Specifications mm |
State | Room-temperature Mechanical properties, No less than,% | |||
| σb | σ0.2 | δ | ψ | |||
| Mpa(ksi) | Mpa(ksi) | % | % | |||
| Gr1 | 3.2-6.35 | Annealing (M) |
240 | 170 | 24 | 30 |
| Gr2 | 345 | 275 | 20 | 30 | ||
| Gr3 | 450 | 380 | 18 | 30 | ||
| Gr4 | 550 | 483 | 15 | 25 | ||
| Gr1 | 1.6-3.2 | 240 | 170 | 15 | --- | |
| Gr2 | 345 | 275 | 12 | --- | ||
| Gr3 | 450 | 330 | 10 | --- | ||
| Gr4 | 550 | 483 | 8 | --- | ||
| Gr1 | 1.0-1.6 | 240 | --- | 12 | --- | |
| Gr2 | 345 | --- | 10 | --- | ||
| Gr3 | 450 | --- | 8 | --- | ||
| Gr4 | 550 | --- | 6 | --- | ||
Note: Special requests will be settled by negotiation between both parties.
