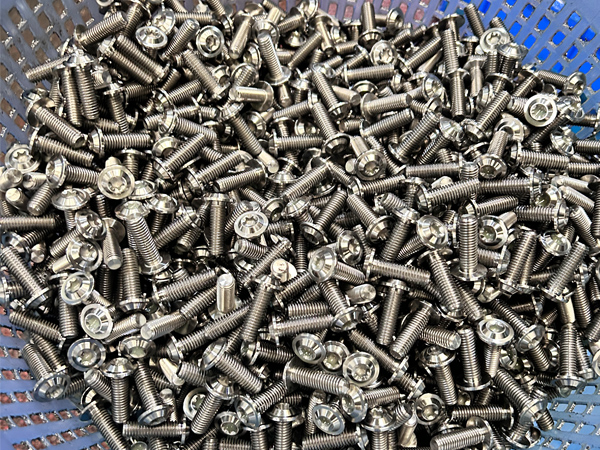

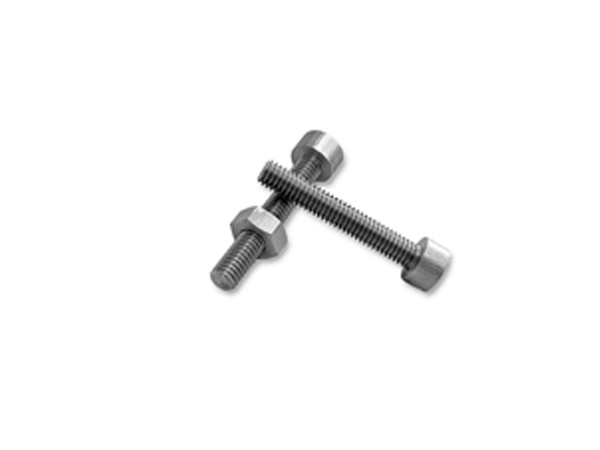

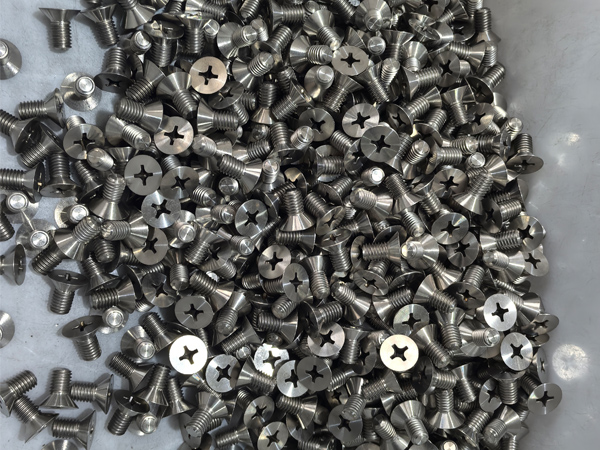

Titanium fasteners/screw/nuts

Application
Applied in home improvement, sport equipments, motocycle DIY, rrames, disc drakes, fasteners, pipes, car and bicycle modification.
Material:
Gr1 Gr2 Gr3 Gr4 Gr5
Main features:
High strength, fatigue resistance
Anti-corrosion
Excellent mechanical strength

Send Email

Detailed Description

Grade : Gr1 Gr2 Gr3 Gr4 Gr5

Standard：ASTM B 348

Surface Treatment: Black, acid pickling, lathing, polishing.

Application : Applied inhome improvement, sport equipments, motocycle DIY, rrames, disc drakes, fasteners, pipes, car and bicycle modification.

Parameter

Category	Gr1 (TA1)	Gr2 (TA2)	Gr5 (TC4)	Gr7 (TA9)
Standard	ASTM B348	ASTM B348	ASTM B348	ASTM B348
Tensile Strength	≥240 MPa	≥345 MPa	≥895 MPa	≥345 MPa
Yield Strength	≥170 MPa	≥275 MPa	≥828 MPa	≥275 MPa
Elongation	≥24%	≥20%	≥10%	≥20%
Elastic Modulus	102 GPa	105 GPa	110-120 GPa	105 GPa
Hardness	HRB 70-80	HRB 80-90	HRC 30-36	HRB 80-90
Typical Applications	Low-strength, high corrosion resistance	General purpose	Aerospace	Strong acid environments

Note: Special requests will be settled by negotiation between both parties.
