Titanium-zirconium-molybdenum Alloy(TZM)

Application:
high-temperature structural material, such as the wall of a high temperature furnace and a the heat screen of HIP/Tool materials for high-temperature processing/Glass furnace stirrers, head pieces etc./ Radiation shields, support frames, heat exchangers a
Material:
TZM
Main features:
High recrystallization temperature
High Strength
Better welding performance

Send Email

Detailed Description

Titanium-zirconium-molybdenum Alloy Commonly abbreviated as TZM, it is a molybdenum-based alloy containing titanium and zirconium as alloying elements. Currently used are TZM (Mo-0.5% Ti-0.008% Zr) and TZC (Mo-1.25% Ti-0.15% Zr-0.15% carbon).When the temperature exceeds 1300 ° C, TZM strength is twice as pure molybdenum. TZM recrystallization temperature higher than molybdenum about 250'C, and have better welding performance.

Application：

- high-temperature structural material, such as the wall of a high temperature furnace and a the heat screen of HIP

- Tool materials for high-temperature processing

- Glass furnace stirrers, head pieces etc.
- Radiation shields, support frames, heat exchangers and track bars for nuclear energy equipment

Surface Processing Available:

- cold rolling

- grinding

- washing surface

- Sandblasting

Available shape:

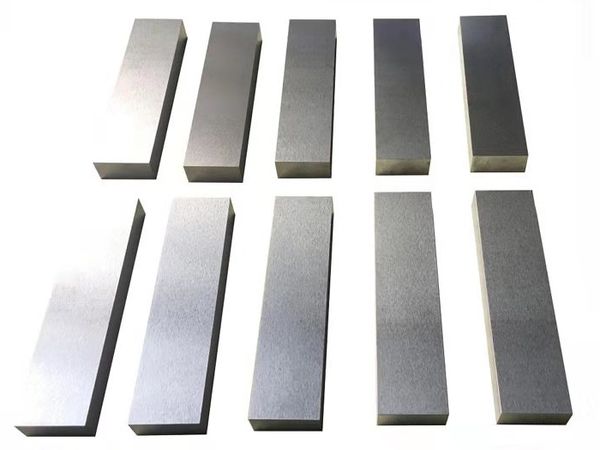

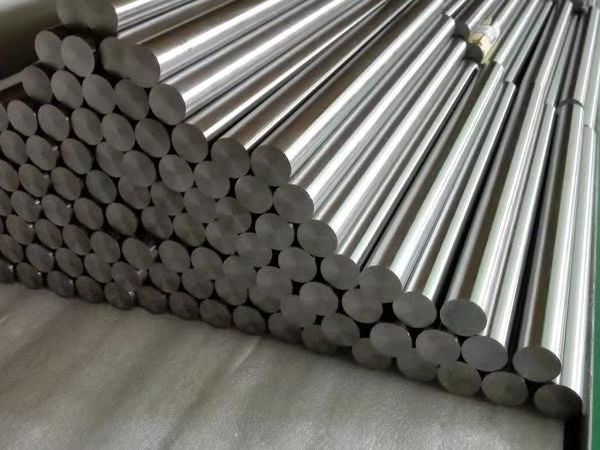

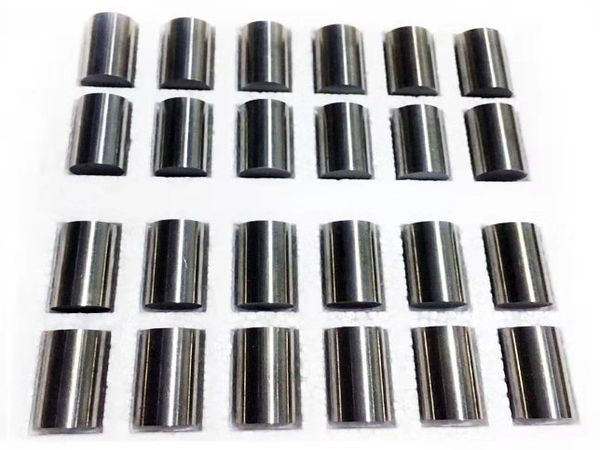

Bar, Rod, Plate, Sheet, Boat or aby other Fabricated Items
