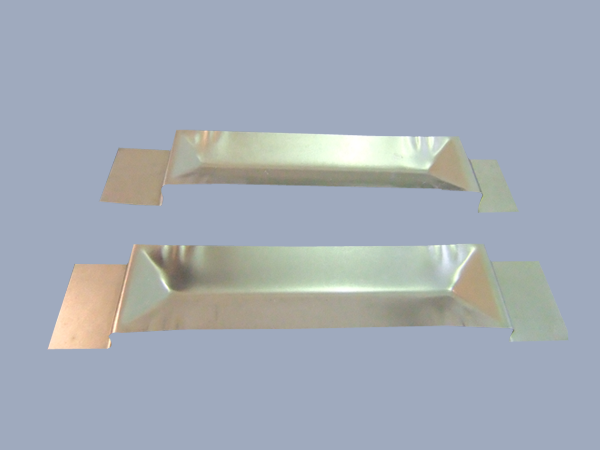

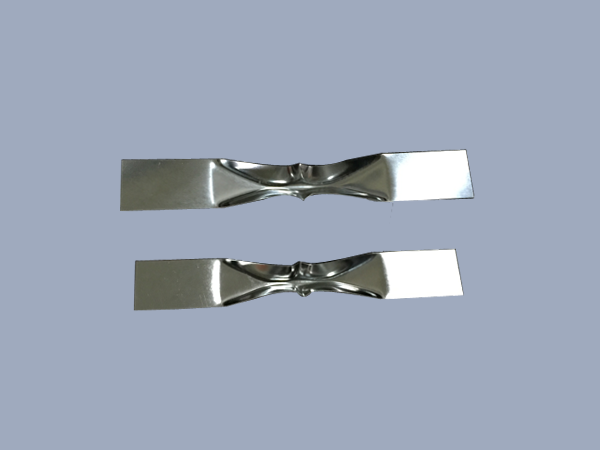

Tungsten Boats
Film Coating
99.95% min
Long service life
High Purity: 99.95%min.
Detailed Description
Grade :W1
W Content : >99.95%
Density : 19.2g/cc
Application : for thermal evaporation, vacuum coating, etc.
Packing : wooden cases with waterproof paper wrapped, EPE foam filled.
Standards Certificate : ISO9001:2008 ( Certificate No. 00612Q20705R0S )
Parameter
Common specifications are as below, we also provide customized service according to the drawings.
Item | Thickness | Width | Length |
210 w boat | 0.2mm | 10mm | 100mm |
310 w boat | 0.3mm | 10mm | 100mm |
510 w boat | 0.5mm | 10mm | 100mm |
215 w boat | 0.2mm | 15mm | 100mm |
315 w boat | 0.3mm | 15mm | 100mm |
515 w boat | 0.5mm | 15mm | 100mm |
220 w boat | 0.2mm | 20mm | 100mm |
320 w boat | 0.3mm | 20mm | 100mm |
